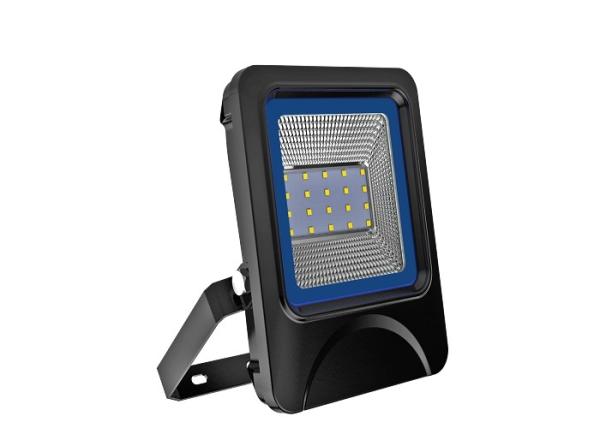

Waterproof LED Flood Light 20W IP66 TUV Osram LED SMD3030 Aluminum Black Fixture
1. Specification:
Input voltage: AC85-265V
Model: AD-AD-XTGD-020A
Power: 20W
Power factor: ≥55%
Shell material: aluminum + tempered glass
LED Driver: CE/TUV/SAA driver
Shell color: black
IP rating: IP66

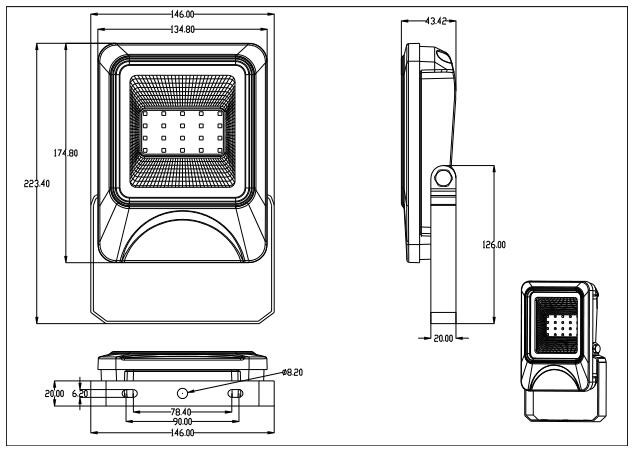

Size: 175*135*44mm
Working temperature: -20℃--60℃
Life span(hour): 30000
Warranty: 3 years
Place of Origin: China
Certificate: CE RoHs
2. LED Chips Technical Data:
LED Brand: Osram
LED Chip: SMD3030
LED Power: 1W
LED Lumen: 110-130LM/W
LED Current: 300mA
LED Voltage: 18V
LED CCT: 3000K 4000K 6500K
LED Quantity: 20pcs
Beam Angle: 120°
Working Temperature: －40℃～＋80℃
3. Description:

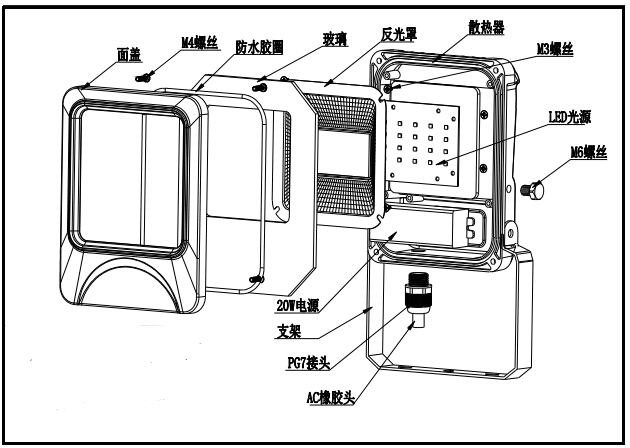

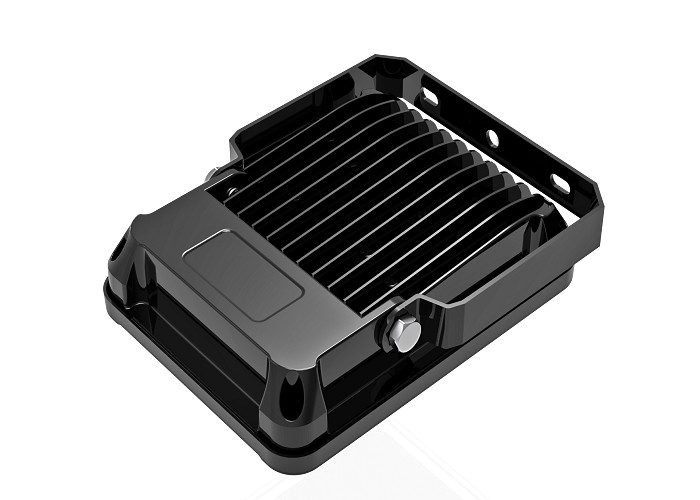

1. Housing:Aluminum heavy housing, thick radiator,good heat dissipation
2. Material: Aluminum-tempered glass
3. Refletor: FishScale reflector can be anti-glare.
4. Stainless steel screws, attached clip for better waterproof.
5. LED driver: Isolated constant LED Driver,our driver passed the TUV certificate.Taiwan CapXon & China stocked company Aishi capacitance;On-bright IC;satble solution&good quality.
4. Features:
-- High efficiency LED constant current driver.
-- Uniform lighting.
-- Quick start.
-- No stroboscopic effect, no glare.
-- High heat-sink efficiency: scientific design to help heat sink.
-- No mercury or lead; environmental protection.--Save 60% energy than traditional light.
-- BV,CE,LVD,VDE,EMC and RoHS certified.
5. Packing:
| Product Size | 175*135*44mm |
| Product Weight | 0.9kg |
| Packing Size | 60*33.5*21.5cm |
| Packing Quantity | 20pcs |
| Packing Weight | 19kg |
6. Other Items:
| Model Item | Power | Lumen | |
| AD-AD-XTGD-010A | 10W | 10000LM | 129*99*44mm |
| AD-AD-XTGD-020A | 20W | 20000LM | 175*135*44mm |
| AD-AD-XTGD-030A | 30W | 30000LM | 215*175*47mm |
| AD-AD-XTGD-050A | 50W | 50000LM | 275*225*48mm |
7. Application:
A. Highway
B. Courtyard
C. Football Field
D. Factory
8. Maintenance Instructions:
1. Please make sure that the power has been cut off before maintenance.
2. Regularly clean the glass of the lamps to keep the light transmittance of the led flood light.
3. The dust of the shell and the heat sink of the lamps need to be cleaned regularly to keep good heat
dissipation.
4. Do not use water or strong corrosive solution for cleaning, preferably with a dry cloth
9. Shipping&Delivery:
Shipping Time: Samples 5-7 days by DHL / Fedex, bulk order 30 days by sea.
Delivery Time: samples 3-5 days, bulk order 20 days.
10. Why Choose Us:
1.Advanced machinery, well trained workers.
2.More than 20 years experience in lighting&switch industry
3.Unique designed, good quality, competitive price.
4.Full range of indoor and outdoor LED lighting solution
5.Zero improper after-service if any quality issue happened
